Products > CP series > > CP86/60 series current transformer

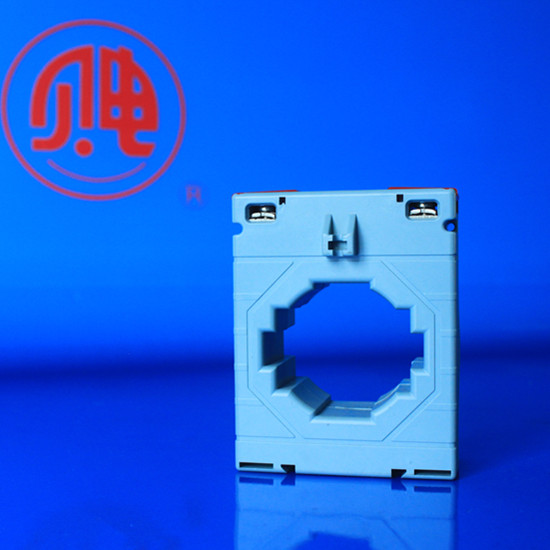

Product name : CP86/60 series current transformer
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
Name:

CP series current transformer
1. Standard: IEC44-1, BS3938, DIN42600, GB1208-2006;

2. Primary current: 1~5000A;
3. Secondary current: 1A or 5A;

4. Accuracy class: 0.5, 1.0 (Class0.2 or class0.2S can be tailor made!)

5. Cases are made of ABS, meet UL-94V0;

6. Short -time thermal current: Ith=60x1h;

7. Security factor: FS less than 5;



Model:

 CP-4, CP62/WS, CP45/14, CP62/20, CP62/30, CP62/40, CP74/40, CP74/50,

CP80/30, CP80/40, CP86/60, CP100/60, CP104/80, CP140/100, CP145/100.

型号

Model

额定电流比

Rated Current Ratio

额定负载

Rated Burden

准确级

Accuracy Class

CP62/WS

5/5A-80/5A

5VA

0.5

5/1A-100/1A

5VA

0.5

CP45/14

30/5A-40/5A

1VA

3.0

50/5A

1.5VA

1.0

60/5A-100/5A

1.5-2.5VA

1.0

CP62/20

30/5A

1.0VA

3.0

40/5A

1.5VA

3.0

50/5A-100/5A

1.5VA

1.0

150/5A

5VA

1.0

CP62/30

60/5A-80/5A

1.5VA

1.0

100/5A-150/5A

2.5VA

0.5

200/5A-300/5A

5VA

0.5

CP62/40

150/5A

2.5VA

1.0

250/5A

2.5VA

1.0

300/5A-500/5A

2.5VA-5VA

0.5

600/5A

5VA

0.5

CP74/40

200/5A-400/5A

2.5VA-5VA

0.5

500/5A

5VA-10VA

0.5

600/5A-800/5A

5VA-10VA

0.5

CP74/50

300/5A-500/5A

5VA

0.5

600/5A-800/5A

10VA

0.5

1000/5A

15VA

0.5

CP86/60

500/5A-800/5A

5VA-10VA

0.5

1000/5A-1600/5A

15VA

0.5

CP104/80

800/5A

10VA

0.5

1000/5A

15VA

0.5

1200/5A

15VA

0.5

1500/5A-2000/5A

20VA

0.5

CP140/100

800/5A

10VA

0.5

1000/5A-1200/5A

15VA

0.5

1500/5A-1600/5A

20VA

0.5

2000/5A-3200/5A

30VA

0.5
